DBOBJDefinitionNode Class Reference

#include <dbobjdefinition.hpp>

Inheritance diagram for DBOBJDefinitionNode:

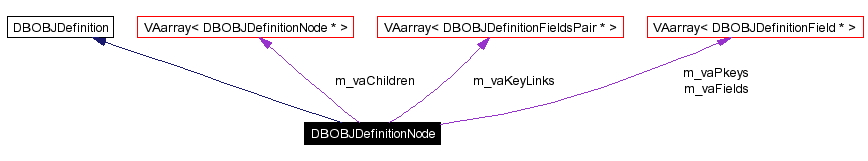

[legend]Collaboration diagram for DBOBJDefinitionNode:

[legend]List of all members.

---

Detailed Description

This class represents the definition of a node.

Definition at line 377 of file dbobjdefinition.hpp.

Public Methods
	DBOBJDefinitionNode ()
	Constructor. Inits private data members.
	~DBOBJDefinitionNode ()
	Destructor. Releases private data members.
const char *	getName () const
	Returns: (string) Name of the node.
const char *	getDBTable () const
	Returns the name of the table on which the node is mapped.
const char *	getRestrict () const
	Returns the hardcoded restriction clause of the node.
const char *	getCheckPre () const
	Returns the pre-save SQL order of the node.
const char *	getCheckPost () const
	Returns the post-save SQL order of the node.
bool	isLocked () const
	Returns wheteher the node is read-only or not.
bool	isDistinct () const
	Returns wheteher the node is read-only or not.
DBOBJDefinitionNode *	getParent () const
	Returns the parent node of the node.
void	setName (const char *p_szName)
	Sets the name of the node.
void	setDBtable (const char *p_szDBTable)
	Sets the table name on which the node is mapped.
void	setRestrict (const char *p_szRestrict)
	Sets the node hardcoded restriction clause.
void	setCheckPre (const char *p_szCheckPre)
	Sets node's pre-save SQL order.
void	setCheckPost (const char *p_szCheckPost)
	Sets node's post-save SQL order.
void	setLocked (bool p_boolLocked)
	Sets node's read only.
void	setDistinct (bool p_boolDistinct)
	Sets node's read only.
void	setParent (DBOBJDefinitionNode *p_pParentDefinition)
	Sets node's parent node definition .
const char *	getOnDelete () const
const char *	getOnInsert () const
const char *	getOnUpdate () const
void	setOnDelete (const char *p_pszOnDelete)
void	setOnInsert (const char *p_pszOnInsert)
void	setOnUpdate (const char *p_pszOnUpdate)
void	addChild (DBOBJDefinitionNode *p_ChildDefinition)
	Appends a child node definition to the node.
void	removeChild (unsigned int p_uiIndex, bool p_boolDestroy=true)
	Removes a child node definition from the node.
void	removeChild (const char *p_szName, bool p_boolDestroy=true)
	Removes a child node definition from the node.
unsigned int	getChildNodesCount () const
	Returns the number of child definition nodes.
DBOBJDefinitionNode *	getChildNode (unsigned int p_uiIndex) const
	Returns a child node definition.
DBOBJDefinitionNode *	getChildNode (const char *p_szName) const
	Returns a child node definition.
void	addField (DBOBJDefinitionField *p_pFieldDefinition)
	Appends a field definition to the node.
void	removeField (unsigned int p_uiIndex, bool p_boolDestroy=true)
	Removes a field definition from the node.
void	removeField (const char *p_szName, bool p_boolDestroy=true)
	Removes a field definition from the node.
unsigned int	getFieldsCount () const
	Returns the number of field definitions of the node.
DBOBJDefinitionField *	getField (unsigned int p_uiIndex) const
	Returns a field definition.
DBOBJDefinitionField *	getField (const char *p_szName) const
	Returns a field definition.
void	addPkey (const char *p_szName)
	Appends a primary key to the node.
void	remPkey (unsigned int p_index)
	Removes a primary key to the node.
unsigned int	getPkeysCount () const
	Returns the number of primary keys.
DBOBJDefinitionField *	getPkey (unsigned int p_uiIndex) const
	Returns a primary key field defintion.
DBOBJDefinitionField *	getPkey (const char *p_pszName) const
	Returns a primary key field defintion.
void	addKeyLink (const char *p_szLocalName, const char *p_szParentName)
	Appends a key link beetween this node and its parent.
void	remKeyLink (unsigned int p_uiIndex)
	Removes a key link.
unsigned int	getKeyLinksCount () const
	Returns the number of key links of the node.
DBOBJDefinitionFieldsPair *	getKeyLink (unsigned int p_uiIndex) const
	Returns the pair of field definitions of a key link.
DBOBJDefinitionFieldsPair *	getKeyLink (const char *p_pszName) const
	Returns the pair of field definitions of a key link.
void	getXML (XMLStreamConsumer *p_pXMLBufOut)
	Outputs XML stream of the definition tree.

---

Constructor & Destructor Documentation

DBOBJDefinitionNode::DBOBJDefinitionNode (    )

Constructor. Inits private data members. Definition at line 406 of file dbobjdefinition.cpp. References DEBUG_CREATE, and importCharBuffer().

DBOBJDefinitionNode::~DBOBJDefinitionNode (    )

Destructor. Releases private data members. Definition at line 427 of file dbobjdefinition.cpp. References DEBUG_DEL, and releaseCharBuffer().

---

Member Function Documentation

void DBOBJDefinitionNode::addChild (  DBOBJDefinitionNode *    p_ChildDefinition )

Appends a child node definition to the node. Parameters: p_ChildDefinition  (DBOBJDefinitionNode*) Child node object to append. Definition at line 660 of file dbobjdefinition.cpp. References VAarray< DBOBJDefinitionNode * >::add(), DEBUG_FUNC, getName(), and setParent(). Referenced by SAXDBOBJDefinitionBuilder::startElement().

void DBOBJDefinitionNode::addField (  DBOBJDefinitionField *    p_pFieldDefinition )

Appends a field definition to the node. Parameters: p_pFieldDefinition  (DBOBJDefinitionField*) Field definition object to append. Definition at line 738 of file dbobjdefinition.cpp. References VAarray< DBOBJDefinitionField * >::add(), DEBUG_FUNC, DBOBJDefinitionField::getName(), and DBOBJDefinitionField::setParent(). Referenced by AutodescStreamer::completeDefinitionNode(), and SAXDBOBJDefinitionBuilder::startElement().

void DBOBJDefinitionNode::addKeyLink (  const char *    p_szLocalName, const char *    p_szParentName )

Appends a key link beetween this node and its parent. Parameters: p_szLocalName  (string) Name of the field of this node used for the join. p_szParentName  (string) Name of the field of parent node used for the join. Exceptions: XMLFlowException  ERRCODE_CAUSE_MISSINGREF Definition at line 883 of file dbobjdefinition.cpp. References VAarray< DBOBJDefinitionFieldsPair * >::add(), DEBUG_FUNC, _DBOBJDefinitionFieldsPair::first, getField(), getName(), getParent(), _DBOBJDefinitionFieldsPair::second, and THROW_XMLFLOW_EXCEPTION. Referenced by SAXDBOBJDefinitionBuilder::endElement().

void DBOBJDefinitionNode::addPkey (  const char *    p_szName )

Appends a primary key to the node. Parameters: p_szName  (string) Name of the primary key field. Exceptions: XMLFlowException  ERRCODE_CAUSE_MISSINGREF Definition at line 819 of file dbobjdefinition.cpp. References VAarray< DBOBJDefinitionField * >::add(), DEBUG_FUNC, getField(), getName(), DBOBJDefinitionField::setPkey(), and THROW_XMLFLOW_EXCEPTION. Referenced by SAXDBOBJDefinitionBuilder::endElement().

const char * DBOBJDefinitionNode::getCheckPost (    )  const

Returns the post-save SQL order of the node. Returns: (string) Post-save SQL order of the node. Definition at line 488 of file dbobjdefinition.cpp. References DEBUG_FUNC, and exportCharBuffer(). Referenced by DBOBJSetStreamer::buildCHECKStatement(), and getXML().

const char * DBOBJDefinitionNode::getCheckPre (    )  const

Returns the pre-save SQL order of the node. Returns: (string) Pre-save SQL order of the node. Definition at line 479 of file dbobjdefinition.cpp. References DEBUG_FUNC, and exportCharBuffer(). Referenced by DBOBJSetStreamer::buildCHECKStatement(), and getXML().

DBOBJDefinitionNode * DBOBJDefinitionNode::getChildNode (  const char *    p_szName )  const

Returns a child node definition. Parameters: p_szName  (string) Name of the node. Returns: (DBOBJDefinitionNode*) Child node definition requested. Definition at line 727 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionNode * >::get().

DBOBJDefinitionNode * DBOBJDefinitionNode::getChildNode (  unsigned int    p_uiIndex )  const

Returns a child node definition. Parameters: p_index  (int) Index of the node. Returns: (DBOBJDefinitionNode*) Child node definition requested. Definition at line 718 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionNode * >::get(). Referenced by AutodescStreamer::completeDefinitionNode(), getXML(), DDLStreamer::makeNodeDDL(), DBOBJGetStatementSAXBuilder::startElement(), and DBObjectSAXBuilder::startElement().

unsigned int DBOBJDefinitionNode::getChildNodesCount (    )  const

Returns the number of child definition nodes. Returns: (int) Number of child nodes. Definition at line 709 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionNode * >::size(). Referenced by AutodescStreamer::completeDefinitionNode(), getXML(), and DDLStreamer::makeNodeDDL().

const char * DBOBJDefinitionNode::getDBTable (    )  const

Returns the name of the table on which the node is mapped. Returns: (string) The name of the table on which is mapped the node. Definition at line 461 of file dbobjdefinition.cpp. References DEBUG_FUNC, and exportCharBuffer(). Referenced by DBOBJSetStreamer::buildDELETEStatement(), DBOBJSetStreamer::buildINSERTStatement(), DBOBJSetStreamer::buildUPDATEStatement(), AutodescStreamer::completeDefinitionNode(), getXML(), and DDLStreamer::makeNodeDDL().

DBOBJDefinitionField * DBOBJDefinitionNode::getField (  const char *    p_szName )  const

Returns a field definition. Parameters: p_szName  (string) Name of the field to return. Returns: (DBOBJDefinitionField*) The requested field definition. Definition at line 807 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionField * >::get().

DBOBJDefinitionField * DBOBJDefinitionNode::getField (  unsigned int    p_uiIndex )  const

Returns a field definition. Parameters: p_index  (int) Index of the field to return. Returns: (DBOBJDefinitionField*) The requested field definition. Definition at line 798 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionField * >::get(). Referenced by addKeyLink(), addPkey(), DBOBJSetStreamer::buildINSERTStatement(), DBOBJSetStreamer::buildUPDATEStatement(), AutodescStreamer::completeDefinitionNode(), getXML(), DDLStreamer::makeNodeDDL(), DBOBJGetStatementSAXBuilder::startElement(), and DBObjectSAXBuilder::startElement().

unsigned int DBOBJDefinitionNode::getFieldsCount (    )  const

Returns the number of field definitions of the node. Returns: (int) The number of field definitions of the node. Definition at line 789 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionField * >::size(). Referenced by DBOBJSetStreamer::buildINSERTStatement(), DBOBJSetStreamer::buildUPDATEStatement(), AutodescStreamer::completeDefinitionNode(), getXML(), and DDLStreamer::makeNodeDDL().

DBOBJDefinitionFieldsPair * DBOBJDefinitionNode::getKeyLink (  const char *    p_pszName )  const

Returns the pair of field definitions of a key link. Parameters: p_pszName  (const char*) The name of the local key link field. Returns: The pair of field definitions of a key link. Definition at line 941 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionFieldsPair * >::get().

DBOBJDefinitionFieldsPair * DBOBJDefinitionNode::getKeyLink (  unsigned int    p_uiIndex )  const

Returns the pair of field definitions of a key link. Parameters: p_index  (int) The index of the key link. Returns: The pair of field definitions of a key link. Definition at line 932 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionFieldsPair * >::get(). Referenced by getXML().

unsigned int DBOBJDefinitionNode::getKeyLinksCount (    )  const

Returns the number of key links of the node. Returns: (int) The number of key links of the node. Definition at line 923 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionFieldsPair * >::size(). Referenced by getXML().

const char * DBOBJDefinitionNode::getName (    )  const

Returns: (string) Name of the node. Definition at line 452 of file dbobjdefinition.cpp. References DEBUG_FUNC, and exportCharBuffer(). Referenced by addChild(), addKeyLink(), addPkey(), DBOBJGetStatementNode::DBOBJGetStatementNode(), SAXDBOBJDefinitionBuilder::endElement(), getXML(), DDLStreamer::makeNodeDDL(), DBObjectNode::setDefinition(), DBOBJGetStatementSAXBuilder::startElement(), and DBObjectSAXBuilder::startElement().

const char * DBOBJDefinitionNode::getOnDelete (    )  const

Definition at line 602 of file dbobjdefinition.cpp. References DEBUG_FUNC, and exportCharBuffer(). Referenced by DBOBJSetStreamer::buildDELETEStatement(), and getXML().

const char * DBOBJDefinitionNode::getOnInsert (    )  const

Definition at line 611 of file dbobjdefinition.cpp. References DEBUG_FUNC, and exportCharBuffer(). Referenced by DBOBJSetStreamer::buildINSERTStatement(), and getXML().

const char * DBOBJDefinitionNode::getOnUpdate (    )  const

Definition at line 620 of file dbobjdefinition.cpp. References DEBUG_FUNC, and exportCharBuffer(). Referenced by DBOBJSetStreamer::buildUPDATEStatement(), and getXML().

DBOBJDefinitionNode * DBOBJDefinitionNode::getParent (    )  const

Returns the parent node of the node. Returns: (DBOBJDefinitionNode* ) Parent node of the node. Definition at line 516 of file dbobjdefinition.cpp. References DEBUG_FUNC. Referenced by addKeyLink().

DBOBJDefinitionField * DBOBJDefinitionNode::getPkey (  const char *    p_pszName )  const

Returns a primary key field defintion. Parameters: p_pszName  (const char*) Name of the primary key field. Returns: (DBOBJDefinitionField*) The primary key field requested. Definition at line 871 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionField * >::get().

DBOBJDefinitionField * DBOBJDefinitionNode::getPkey (  unsigned int    p_uiIndex )  const

Returns a primary key field defintion. Parameters: p_index  (int) Index of the primary key. Returns: (DBOBJDefinitionField*) The primary key field requested. Definition at line 862 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionField * >::get(). Referenced by DBOBJSetStreamer::buildWHEREclause(), and getXML().

unsigned int DBOBJDefinitionNode::getPkeysCount (    )  const

Returns the number of primary keys. Returns: (int) Number of primary keys. Definition at line 853 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionField * >::size(). Referenced by DBOBJSetStreamer::buildWHEREclause(), and getXML().

const char * DBOBJDefinitionNode::getRestrict (    )  const

Returns the hardcoded restriction clause of the node. Returns: (string) Hardcoded restriction clause of the node. Definition at line 470 of file dbobjdefinition.cpp. References DEBUG_FUNC, and exportCharBuffer(). Referenced by getXML().

void DBOBJDefinitionNode::getXML (  XMLStreamConsumer *    p_pXMLBufOut )

Outputs XML stream of the definition tree. Parameters: p_pXMLBufOut  (XMLStreamBuffer*) The buffer to ouput the XML stream in. Definition at line 952 of file dbobjdefinition.cpp. References correctAttrValue(), DBOBJDEFNODE_CHECKPOST, DBOBJDEFNODE_CHECKPRE, DBOBJDEFNODE_DISTINCT, DBOBJDEFNODE_INKEY, DBOBJDEFNODE_LOCK, DBOBJDEFNODE_NAME, DBOBJDEFNODE_ONDELETE, DBOBJDEFNODE_ONINSERT, DBOBJDEFNODE_ONUPDATE, DBOBJDEFNODE_OUTKEY, DBOBJDEFNODE_PKEY, DBOBJDEFNODE_RESTRICT, DBOBJDEFNODE_TABLE, DBOBJDEFNODE_TAGNAME, DEBUG_FUNC, _DBOBJDefinitionFieldsPair::first, getCheckPost(), getCheckPre(), getChildNode(), getChildNodesCount(), getDBTable(), getField(), getFieldsCount(), getKeyLink(), getKeyLinksCount(), DBOBJDefinitionField::getName(), getName(), getOnDelete(), getOnInsert(), getOnUpdate(), getPkey(), getPkeysCount(), getRestrict(), DBOBJDefinitionField::getXML(), isDistinct(), isLocked(), releaseCharBuffer(), REQ_FALSE, REQ_TRUE, and _DBOBJDefinitionFieldsPair::second. Referenced by AutodescStreamer::commitStream().

bool DBOBJDefinitionNode::isDistinct (    )  const

Returns wheteher the node is read-only or not. Returns: (bool) TRUE if the node is read only. Definition at line 507 of file dbobjdefinition.cpp. References DEBUG_FUNC. Referenced by getXML().

bool DBOBJDefinitionNode::isLocked (    )  const

Returns wheteher the node is read-only or not. Returns: (bool) TRUE if the node is read only. Definition at line 497 of file dbobjdefinition.cpp. References DEBUG_FUNC. Referenced by AutodescStreamer::completeDefinitionNode(), getXML(), and DBOBJSetStreamer::processNode().

void DBOBJDefinitionNode::remKeyLink (  unsigned int    p_uiIndex )

Removes a key link. Parameters: p_index  (int) Index of the key link to remove. Definition at line 913 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionFieldsPair * >::remove().

void DBOBJDefinitionNode::removeChild (  const char *    p_szName, bool    p_boolDestroy = true )

Removes a child node definition from the node. Parameters: p_szName  (string) Name of the node to remove. p_boolDestroy  (boolean, optionnal) TRUE if the child node definition must be deleted when removed. Definition at line 690 of file dbobjdefinition.cpp. References DEBUG_FUNC, VAarray< DBOBJDefinitionNode * >::remove(), and setParent().

void DBOBJDefinitionNode::removeChild (  unsigned int    p_uiIndex, bool    p_boolDestroy = true )

Removes a child node definition from the node. Parameters: index  (int) Index of the child node to remove. p_boolDestroy  (boolean, optionnal) TRUE if the child node definition must be deleted when removed. Definition at line 671 of file dbobjdefinition.cpp. References DEBUG_FUNC, VAarray< DBOBJDefinitionNode * >::remove(), and setParent().

void DBOBJDefinitionNode::removeField (  const char *    p_szName, bool    p_boolDestroy = true )

Removes a field definition from the node. Parameters: p_szName  (string) Name of the field deefiniton to remove. p_boolDestroy  (boolean, optionnal) TRUE if the field definition must be deleted when removed. Definition at line 762 of file dbobjdefinition.cpp. References DEBUG_FUNC.

void DBOBJDefinitionNode::removeField (  unsigned int    p_uiIndex, bool    p_boolDestroy = true )

Removes a field definition from the node. Parameters: index  (int) Index of the field deefiniton to remove. p_boolDestroy  (boolean, optionnal) TRUE if the field definition must be deleted when removed. Definition at line 749 of file dbobjdefinition.cpp. References DEBUG_FUNC, and VAarray< DBOBJDefinitionField * >::remove().

void DBOBJDefinitionNode::remPkey (  unsigned int    p_index )

Removes a primary key to the node. Parameters: p_index  (int) Index of the primary key to remove. Definition at line 840 of file dbobjdefinition.cpp. References DEBUG_FUNC, VAarray< DBOBJDefinitionField * >::remove(), and DBOBJDefinitionField::setPkey().

void DBOBJDefinitionNode::setCheckPost (  const char *    p_szCheckPost )

Sets node's post-save SQL order. Parameters: p_szCheckPost  (string) Post-save SQL order. Definition at line 563 of file dbobjdefinition.cpp. References DEBUG_FUNC, and importCharBuffer(). Referenced by SAXDBOBJDefinitionBuilder::startElement().

void DBOBJDefinitionNode::setCheckPre (  const char *    p_szCheckPre )

Sets node's pre-save SQL order. Parameters: p_szCheckPre  (string) Pre-save SQL order. Definition at line 554 of file dbobjdefinition.cpp. References DEBUG_FUNC, and importCharBuffer(). Referenced by SAXDBOBJDefinitionBuilder::startElement().

void DBOBJDefinitionNode::setDBtable (  const char *    p_szDBTable )

Sets the table name on which the node is mapped. Parameters: p_szDBTable  (string) Table Name. Definition at line 536 of file dbobjdefinition.cpp. References DEBUG_FUNC, and importCharBuffer(). Referenced by SAXDBOBJDefinitionBuilder::startElement().

void DBOBJDefinitionNode::setDistinct (  bool    p_boolDistinct )

Sets node's read only. Parameters: p_boolLocked  (bool) TRUE to make the node read only. Definition at line 581 of file dbobjdefinition.cpp. References DEBUG_FUNC. Referenced by SAXDBOBJDefinitionBuilder::startElement().

void DBOBJDefinitionNode::setLocked (  bool    p_boolLocked )

Sets node's read only. Parameters: p_boolLocked  (bool) TRUE to make the node read only. Definition at line 572 of file dbobjdefinition.cpp. References DEBUG_FUNC. Referenced by SAXDBOBJDefinitionBuilder::startElement().

void DBOBJDefinitionNode::setName (  const char *    p_szName )

Sets the name of the node. Parameters: p_szName  (string) Name of the node. Definition at line 527 of file dbobjdefinition.cpp. References DEBUG_FUNC, and importCharBuffer(). Referenced by SAXDBOBJDefinitionBuilder::startElement().

void DBOBJDefinitionNode::setOnDelete (  const char *    p_pszOnDelete )

Definition at line 629 of file dbobjdefinition.cpp. References DEBUG_FUNC, and importCharBuffer(). Referenced by SAXDBOBJDefinitionBuilder::startElement().

void DBOBJDefinitionNode::setOnInsert (  const char *    p_pszOnInsert )

Definition at line 638 of file dbobjdefinition.cpp. References DEBUG_FUNC, and importCharBuffer(). Referenced by SAXDBOBJDefinitionBuilder::startElement().

void DBOBJDefinitionNode::setOnUpdate (  const char *    p_pszOnUpdate )

Definition at line 648 of file dbobjdefinition.cpp. References DEBUG_FUNC, and importCharBuffer(). Referenced by SAXDBOBJDefinitionBuilder::startElement().

void DBOBJDefinitionNode::setParent (  DBOBJDefinitionNode *    p_pParentDefinition )

Sets node's parent node definition . Parameters: p_pParentDefinition  (DBOBJDefinitionNode*) Node's parent definition node. Definition at line 590 of file dbobjdefinition.cpp. References DEBUG_FUNC. Referenced by addChild(), and removeChild().

void DBOBJDefinitionNode::setRestrict (  const char *    p_szRestrict )

Sets the node hardcoded restriction clause. Parameters: p_szRestrict  (string) Hardcoded restriction clause. Definition at line 545 of file dbobjdefinition.cpp. References DEBUG_FUNC, and importCharBuffer(). Referenced by SAXDBOBJDefinitionBuilder::startElement().

---

The documentation for this class was generated from the following files:

• dbobjdefinition.hpp
• dbobjdefinition.cpp

---
