XMLProcessor Class Reference

#include <xmlprocessor.hpp>

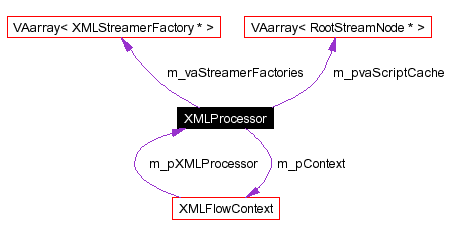

Collaboration diagram for XMLProcessor:

[legend]List of all members.

---

Detailed Description

Entry point persistent class. class represents the XDFLengine server. is able to compile and excute clients requests. class is designed to be instanciated only once in an execution environment and to last as long as the host process. calls to execution members are reentrant and thread-safe.

Definition at line 66 of file xmlprocessor.hpp.

Public Methods
	XMLProcessor ()
	Constructor. Sets active URI, creates and attach Handlers to the processor.
	~XMLProcessor ()
	Destructor. Kills processor handlers.
void	setActiveURI (const char *p_pszActiveURI)
	Active URI property setter.
const char *	getActiveURI ()
	Returns active URI.
void	loadStreamerFactories ()
	Loads all streamer factories.
void	loadValuers (XMLFlowContext *p_pContext) const
	Load all valuers.
void	addStreamerFactory (XMLStreamerFactory *p_pXMLHandler, const char *p_pszName)
	Adds an XMLStreamerFactory object to the processor.
XMLStreamerFactory *	getStreamerFactory (const char *p_pszName) const
	Returns an XMLHandler object, given its name.
void	setContext (XMLFlowContext *p_pContext)
XMLFlowContext *	getContext () const
void	cacheScript (RootStreamNode *p_pRootNode, const char *p_pszCacheName, unsigned int p_uiThreadId=0)
const RootStreamNode *	getCachedScript (const char *p_pszCacheName, unsigned int p_uiThreadId=0)
RootStreamNode *	compile (XMLStreamProvider *p_pInput, unsigned int p_uiThreadId=0) const
int	execute (const RootStreamNode *p_pRootNode, XMLStreamConsumer *p_pOutput, XMLFlowContext *p_pContext=0) const
int	process (XMLStreamProvider *p_pInput, XMLStreamConsumer *p_pOutput, XMLFlowContext *p_pContext=0) const
void	tick (unsigned long p_ulClock)
	Time ticker method. This method is to be called periodically by a separate thread for the handler to make its state maintenance tasks.
Static Public Methods
void	init ()
	Processor initialisation method. Enforce XMLProcessor prerequities (Xerces init).
void	terminate ()
	Processor terminaison method. Release XMLProcessor prerequities (Xerces terminate).
XMLStreamBuffer *	getNewBuffer (const char *p_pszBufferType=0, const char *p_pszFileName=0, bool p_fReadOnly=false, unsigned int p_uiBufferSize=0)
	Produces and returns a new XMLStreamBuffer of the given type.
void	setThreadCount (unsigned int p_uiThreadCount)
	Sets the number of threads which will use the processor.
unsigned int	getThreadCount ()
	Returns the number of threads which will use the processor.
Protected Attributes
char *	m_pszActiveURI
	active URI.
VAarray< XMLStreamerFactory * >	m_vaStreamerFactories
	Collection of XMLStreamerFactories.
VAarray< RootStreamNode * >	m_pvaScriptCache
	Compiled script cache.
XMLFlowContext *	m_pContext
	Processor static context object.
bool	m_fOwnContext
	Has the context been created by the processor ?

---

Constructor & Destructor Documentation

XMLProcessor::XMLProcessor (    )

Constructor. Sets active URI, creates and attach Handlers to the processor. Definition at line 150 of file xmlprocessor.cpp. References DEBUG_CREATE, m_fOwnContext, m_pContext, m_pszActiveURI, setActiveURI(), and XMLFlowContext.

XMLProcessor::~XMLProcessor (    )

Destructor. Kills processor handlers. Definition at line 166 of file xmlprocessor.cpp. References DEBUG_DEL, VAarray< RootStreamNode * >::empty(), VAarray< XMLStreamerFactory * >::empty(), m_pContext, m_pszActiveURI, m_pvaScriptCache, m_vaStreamerFactories, VAarray< RootStreamNode * >::pop(), VAarray< XMLStreamerFactory * >::pop(), and releaseCharBuffer().

---

Member Function Documentation

void XMLProcessor::addStreamerFactory (  XMLStreamerFactory *    p_pXMLHandler, const char *    p_pszName )

Adds an XMLStreamerFactory object to the processor. Remarks: Setting a XMLStreamerFactory overwrites an existing one with the same name. Parameters: p_pXMLHandler  The XMLStreamerFactory object to add. p_pszName  The Tag name to attribute to the XMLStreamerFactory. Definition at line 267 of file xmlprocessor.cpp. References VAarray< XMLStreamerFactory * >::add(), DEBUG_ECHO, DEBUG_IN, DEBUG_OUT, m_vaStreamerFactories, and XMLStreamerFactory::setParent(). Referenced by loadStreamerFactories().

void XMLProcessor::cacheScript (  RootStreamNode *    p_pRootNode, const char *    p_pszCacheName, unsigned int    p_uiThreadId = 0 )

Definition at line 317 of file xmlprocessor.cpp. References VAarray< RootStreamNode * >::add(), and m_pvaScriptCache.

RootStreamNode * XMLProcessor::compile (  XMLStreamProvider *    p_pInput, unsigned int    p_uiThreadId = 0 )  const

Definition at line 335 of file xmlprocessor.cpp. References CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, MAKE_XMLFLOW_EXCEPTION, ON_XML_FLOW_ERROR_DO, ON_XML_FLOW_ERROR_THROW, PREP_CATCH_XML_FLOW_ERROR, and WATCH_XML_FLOW_ERROR. Referenced by FuncDefineStreamer::commitStream(), CacheScriptStreamer::commitStream(), and process().

int XMLProcessor::execute (  const RootStreamNode *    p_pRootNode, XMLStreamConsumer *    p_pOutput, XMLFlowContext *    p_pContext = 0 )  const

Definition at line 389 of file xmlprocessor.cpp. References CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, getContext(), loadValuers(), MAKE_XMLFLOW_EXCEPTION, ON_XML_FLOW_ERROR_THROW, PREP_CATCH_XML_FLOW_ERROR, RootStreamNode::streamXML(), WATCH_XML_FLOW_ERROR, and XMLFlowContext. Referenced by FuncCallStreamer::commitStream(), and process().

const char * XMLProcessor::getActiveURI (    )

Returns active URI. Returns: Active URI Definition at line 197 of file xmlprocessor.cpp. References exportCharBuffer().

const RootStreamNode * XMLProcessor::getCachedScript (  const char *    p_pszCacheName, unsigned int    p_uiThreadId = 0 )

Definition at line 325 of file xmlprocessor.cpp. References VAarray< RootStreamNode * >::get(), and m_pvaScriptCache.

XMLFlowContext * XMLProcessor::getContext (    )  const

Definition at line 307 of file xmlprocessor.cpp. References m_pContext. Referenced by XMLFlowBuilder::endElement(), execute(), and XMLFlowBuilder::startElement().

XMLStreamBuffer * XMLProcessor::getNewBuffer (  const char *    p_pszBufferType = 0, const char *    p_pszFileName = 0, bool    p_fReadOnly = false, unsigned int    p_uiBufferSize = 0 )  [static]

Produces and returns a new XMLStreamBuffer of the given type. Parameters: p_pszBufferType  Buffer type ( NAMEDBUFSETSTREAMER_FILE, NAMEDBUFSETSTREAMER_STRING, NAMEDBUFSETSTREAMER_ZIP) p_pszFileName  If provided, name of the file which provides buffer's data. p_fReadOnly  TRUE if the file must be read only. p_uiBufferSize  Size of the buffer to be created. Returns: The requested buffer Definition at line 96 of file xmlprocessor.cpp. References DEBUG_FUNC, THROW_XMLFLOW_EXCEPTION, and XMLPROCESSOR_STRING.

XMLStreamerFactory * XMLProcessor::getStreamerFactory (  const char *    p_pszName )  const

Returns an XMLHandler object, given its name. Remarks: If the XMLHandler does not exists, an error is raised. Parameters: p_pszName  (const char*) The name of the parameter. Returns: (XMLHandler*) A pointer to the XMLHandler object Definition at line 282 of file xmlprocessor.cpp. References DEBUG_FUNC, VAarray< XMLStreamerFactory * >::get(), and m_vaStreamerFactories. Referenced by FuncDefineStreamer::commitStream(), and XMLFlowBuilder::startElement().

unsigned int XMLProcessor::getThreadCount (    )  [static]

Returns the number of threads which will use the processor. Returns: The number of threads. Definition at line 139 of file xmlprocessor.cpp. References DEBUG_FUNC. Referenced by DBStreamerFactory::DBStreamerFactory(), DBStreamerFactory::tick(), and DBStreamerFactory::~DBStreamerFactory().

BEGIN_XDFLENGINE_NS void XMLProcessor::init (    )  [static]

Processor initialisation method. Enforce XMLProcessor prerequities (Xerces init). Definition at line 59 of file xmlprocessor.cpp. References DEBUG_IN, DEBUG_INIT, and setThreadCount().

void XMLProcessor::loadStreamerFactories (    )

Loads all streamer factories. Definition at line 208 of file xmlprocessor.cpp. References addStreamerFactory(), DEBUG_IN, and DEBUG_OUT.

void XMLProcessor::loadValuers (  XMLFlowContext *    p_pContext )  const

Load all valuers. Definition at line 252 of file xmlprocessor.cpp. References XMLValuable::addValuer(). Referenced by execute().

int XMLProcessor::process (  XMLStreamProvider *    p_pInput, XMLStreamConsumer *    p_pOutput, XMLFlowContext *    p_pContext = 0 )  const

Definition at line 451 of file xmlprocessor.cpp. References CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, compile(), execute(), XMLFlowContext::getThreadId(), ON_XML_FLOW_ERROR_THROW, PREP_CATCH_XML_FLOW_ERROR, and WATCH_XML_FLOW_ERROR.

void XMLProcessor::setActiveURI (  const char *    p_pszActiveURI )

Active URI property setter. Remarks: The active URI the URI which nodes are interpreted as handlers nodes (ie:active nodes). Parameters: p_pszActiveURI  The name of the URI to set. Default value is given by XMLPROCESSOR_ACTIVEURI. Definition at line 188 of file xmlprocessor.cpp. References DEBUG_FUNC, importCharBuffer(), and m_pszActiveURI. Referenced by XMLProcessor().

void XMLProcessor::setContext (  XMLFlowContext *    p_pContext )

Definition at line 294 of file xmlprocessor.cpp. References DEBUG_FUNC, and m_pContext.

void XMLProcessor::setThreadCount (  unsigned int    p_uiThreadCount )  [static]

Sets the number of threads which will use the processor. Parameters: p_uiThreadCount  The number of threads. Definition at line 130 of file xmlprocessor.cpp. References DEBUG_FUNC. Referenced by init().

void XMLProcessor::terminate (    )  [static]

Processor terminaison method. Release XMLProcessor prerequities (Xerces terminate). Definition at line 80 of file xmlprocessor.cpp. References DEBUG_END, and DEBUG_OUT.

void XMLProcessor::tick (  unsigned long    p_ulClock )

Time ticker method. This method is to be called periodically by a separate thread for the handler to make its state maintenance tasks. Parameters: p_ulClock  (unsigned long) current time, in tick counts. Definition at line 480 of file xmlprocessor.cpp. References VAarray< XMLStreamerFactory * >::get(), m_vaStreamerFactories, VAarray< XMLStreamerFactory * >::size(), and XMLStreamerFactory::tick().

---

Member Data Documentation

bool XMLProcessor::m_fOwnContext [protected]

Has the context been created by the processor ? Definition at line 76 of file xmlprocessor.hpp. Referenced by XMLProcessor().

XMLFlowContext* XMLProcessor::m_pContext [protected]

Processor static context object. Definition at line 75 of file xmlprocessor.hpp. Referenced by getContext(), setContext(), XMLProcessor(), and ~XMLProcessor().

char* XMLProcessor::m_pszActiveURI [protected]

active URI. Definition at line 72 of file xmlprocessor.hpp. Referenced by setActiveURI(), XMLProcessor(), and ~XMLProcessor().

VAarray< RootStreamNode*> XMLProcessor::m_pvaScriptCache [protected]

Compiled script cache. Definition at line 74 of file xmlprocessor.hpp. Referenced by cacheScript(), getCachedScript(), and ~XMLProcessor().

VAarray< XMLStreamerFactory*> XMLProcessor::m_vaStreamerFactories [protected]

Collection of XMLStreamerFactories. Definition at line 73 of file xmlprocessor.hpp. Referenced by addStreamerFactory(), getStreamerFactory(), tick(), and ~XMLProcessor().

---

The documentation for this class was generated from the following files:

• xmlprocessor.hpp
• xmlprocessor.cpp

---
