DBOBJGetStatementSAXBuilder Class Reference

#include <dbobjgetstatement.hpp>

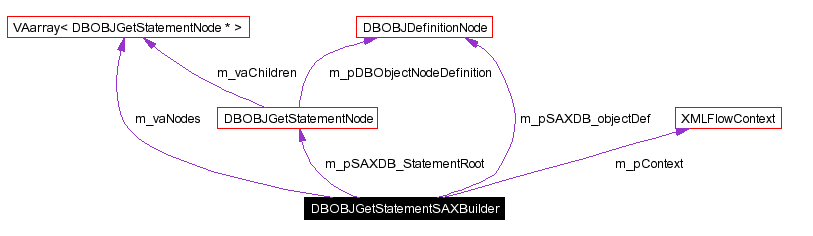

Collaboration diagram for DBOBJGetStatementSAXBuilder:

[legend]List of all members.

---

Detailed Description

Builds a DBObj statement objects tree from a XML stream.

Definition at line 277 of file dbobjgetstatement.hpp.

Public Methods
	DBOBJGetStatementSAXBuilder (XMLFlowContext *p_pContext, const DBOBJDefinitionNode *p_pDBOBJDefNode)
	Constructor. Inits input data members.
	~DBOBJGetStatementSAXBuilder ()
	Destructor. Releases private data members.
DBOBJGetStatementNode *	getStatementRoot ()
	Returns root node of the statement's objects tree.
void	startElement (const XMLCh *const uri, const XMLCh *const localname, const XMLCh *const qname, const Attributes &attrs)
	Receive notification of the beginning of an element. Builds statements nodes and clauses. Attach nodes to the objects tree.
void	characters (const XMLCh *const chars, const unsigned int length)
	Receive notification of character data. Fills clauses values.
void	endElement (const XMLCh *const uri, const XMLCh *const localname, const XMLCh *const qname)
	Receive notification of the end of an element. Attach clauses to objects tree and set statement root for last node closed.
void	startDocument ()
void	endDocument ()
void	ignorableWhitespace (const XMLCh *const chars, const unsigned int length)
void	processingInstruction (const XMLCh *const target, const XMLCh *const data)
void	setDocumentLocator (const Locator *const locator)
void	startPrefixMapping (const XMLCh *const prefix, const XMLCh *const uri)
void	endPrefixMapping (const XMLCh *const prefix)
void	skippedEntity (const XMLCh *const name)
Static Public Methods
DBOBJGetStatementNode *	buildDBOBJGetStatement (XMLFlowContext *p_pContext, XMLStreamProvider *p_pInput, const DBOBJDefinitionNode *p_pDBOBJDefNode)
	Launches input XML parsing and returns corresponding statement objects tree.

---

Constructor & Destructor Documentation

DBOBJGetStatementSAXBuilder::DBOBJGetStatementSAXBuilder (  XMLFlowContext *    p_pContext, const DBOBJDefinitionNode *    p_pDBOBJDefNode )

Constructor. Inits input data members. Definition at line 341 of file dbobjgetstatement.cpp. References DEBUG_CREATE. Referenced by buildDBOBJGetStatement().

DBOBJGetStatementSAXBuilder::~DBOBJGetStatementSAXBuilder (    )

Destructor. Releases private data members. Definition at line 354 of file dbobjgetstatement.cpp. References DEBUG_DEL.

---

Member Function Documentation

DBOBJGetStatementNode * DBOBJGetStatementSAXBuilder::buildDBOBJGetStatement (  XMLFlowContext *    p_pContext, XMLStreamProvider *    p_pInput, const DBOBJDefinitionNode *    p_pDBOBJDefNode )  [static]

Launches input XML parsing and returns corresponding statement objects tree. Parameters: p_pInputXMLStreamBuffer  (XMLStreamBuffer*) Input XML buffer. p_pDBOBJDefNode  (DBOBJDefinitionNode*) Root node of object's definition. Returns: (DBOBJGetStatementNode*) Root node of the statement objects tree. Definition at line 294 of file dbobjgetstatement.cpp. References CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, DBOBJGetStatementSAXBuilder(), DEBUG_IN, DEBUG_OUT, getStatementRoot(), ON_XML_FLOW_ERROR_DO, ON_XML_FLOW_ERROR_THROW, PREP_CATCH_XML_FLOW_ERROR, and WATCH_XML_FLOW_ERROR.

void DBOBJGetStatementSAXBuilder::characters (  const XMLCh *const    chars, const unsigned int    length )

Receive notification of character data. Fills clauses values. Parameters: chars  The characters from the XML document. length  The number of characters to read from the array. Exceptions: SAXException  Any SAX exception, possibly wrapping another exception. Definition at line 533 of file dbobjgetstatement.cpp. References CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, concatCharBuffer(), DEBUG_IN, DEBUG_OUT, XMLFlowContext::getTranscoder(), ON_XML_FLOW_ERROR_THROW, PREP_CATCH_XML_FLOW_ERROR, releaseCharBuffer(), trimCharBuffer(), WATCH_XML_FLOW_ERROR, and XSTR().

void DBOBJGetStatementSAXBuilder::endDocument (    )  [inline]

Definition at line 374 of file dbobjgetstatement.hpp.

void DBOBJGetStatementSAXBuilder::endElement (  const XMLCh *const    uri, const XMLCh *const    localname, const XMLCh *const    qname )

Receive notification of the end of an element. Attach clauses to objects tree and set statement root for last node closed. Parameters: uri  The URI of the asscioated namespace for this element localname  The local part of the element name qname  The QName of this element Exceptions: SAXException  Any SAX exception, possibly wrapping another exception. Definition at line 497 of file dbobjgetstatement.cpp. References DBOBJGetStatementNode::appendFilter(), DBOBJGetStatementNode::appendOrder(), CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, DBOBJGETSTMT_TYPE_FILTER, DBOBJGETSTMT_TYPE_ORDER, DEBUG_IN, DEBUG_OUT, VAarray< DBOBJGetStatementNode * >::empty(), ON_XML_FLOW_ERROR_THROW, VAarray< DBOBJGetStatementNode * >::pop(), PREP_CATCH_XML_FLOW_ERROR, VAarray< DBOBJGetStatementNode * >::top(), and WATCH_XML_FLOW_ERROR.

void DBOBJGetStatementSAXBuilder::endPrefixMapping (  const XMLCh *const    prefix )  [inline]

Definition at line 379 of file dbobjgetstatement.hpp.

DBOBJGetStatementNode * DBOBJGetStatementSAXBuilder::getStatementRoot (    )

Returns root node of the statement's objects tree. Returns: (DBOBJGetStatementNode*) Root node of the statement's objects tree. Definition at line 369 of file dbobjgetstatement.cpp. References DEBUG_FUNC. Referenced by buildDBOBJGetStatement().

void DBOBJGetStatementSAXBuilder::ignorableWhitespace (  const XMLCh *const    chars, const unsigned int    length )  [inline]

Definition at line 375 of file dbobjgetstatement.hpp.

void DBOBJGetStatementSAXBuilder::processingInstruction (  const XMLCh *const    target, const XMLCh *const    data )  [inline]

Definition at line 376 of file dbobjgetstatement.hpp.

void DBOBJGetStatementSAXBuilder::setDocumentLocator (  const Locator *const    locator )  [inline]

Definition at line 377 of file dbobjgetstatement.hpp.

void DBOBJGetStatementSAXBuilder::skippedEntity (  const XMLCh *const    name )  [inline]

Definition at line 380 of file dbobjgetstatement.hpp.

void DBOBJGetStatementSAXBuilder::startDocument (    )  [inline]

Definition at line 373 of file dbobjgetstatement.hpp.

void DBOBJGetStatementSAXBuilder::startElement (  const XMLCh *const    uri, const XMLCh *const    localname, const XMLCh *const    qname, const Attributes &    attrs )

Receive notification of the beginning of an element. Builds statements nodes and clauses. Attach nodes to the objects tree. Parameters: uri  The URI of the asscioated namespace for this element localname  The local part of the element name qname  The QName of this element attrs  The attributes attached to the element, if any. Exceptions: SAXException  Any SAX exception, possibly wrapping another exception. XMLFlowException  ERRCODE_CAUSE_MISSINGREF Definition at line 381 of file dbobjgetstatement.cpp. References DBOBJGetStatementNode::appendChild(), CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, DBOBJGetStatementClause, DBOBJGETSTMT_TYPE_FILTER, DBOBJGETSTMT_TYPE_ORDER, DEBUG_IN, DEBUG_OUT, VAarray< DBOBJGetStatementNode * >::empty(), DBOBJDefinitionNode::getChildNode(), DBOBJGetStatementNode::getDefinition(), DBOBJDefinitionNode::getField(), DBOBJDefinitionNode::getName(), XMLFlowContext::getTranscoder(), importCharBuffer(), ON_XML_FLOW_ERROR_DO, ON_XML_FLOW_ERROR_THROW, PREP_CATCH_XML_FLOW_ERROR, VAarray< DBOBJGetStatementNode * >::push(), SAX_getAttrValue(), DBOBJGetStatementNode::setParent(), THROW_XMLFLOW_EXCEPTION, VAarray< DBOBJGetStatementNode * >::top(), WATCH_XML_FLOW_ERROR, XMLPROCESSOR_MAX_ATTRVAL_SIZE, XMLPROCESSOR_MAX_TAG_SIZE, and XSTR().

void DBOBJGetStatementSAXBuilder::startPrefixMapping (  const XMLCh *const    prefix, const XMLCh *const    uri )  [inline]

Definition at line 378 of file dbobjgetstatement.hpp.

---

The documentation for this class was generated from the following files:

• dbobjgetstatement.hpp
• dbobjgetstatement.cpp

---
