DBObjectSAXBuilder Class Reference

#include <dbobject.hpp>

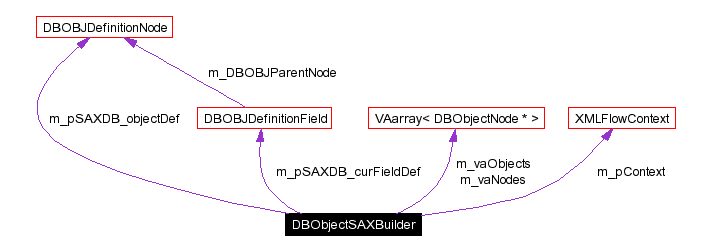

Collaboration diagram for DBObjectSAXBuilder:

[legend]List of all members.

---

Detailed Description

Implements a XMLStreamBuffer using temporary files.

Definition at line 583 of file dbobject.hpp.

Public Methods
	DBObjectSAXBuilder (XMLFlowContext *p_pContext, const DBOBJDefinitionNode *p_pDBOBJDefNode, DBOBJSetAction l_intBaseAction)
	Constructor. Inits private data members.
	~DBObjectSAXBuilder ()
	Destructor. Releases private data members.
void	startElement (const XMLCh *const uri, const XMLCh *const localname, const XMLCh *const qname, const Attributes &attrs)
	Receive notification of the beginning of an element. Builds objects nodes and fields.
void	characters (const XMLCh *const chars, const unsigned int length)
	Receive notification of character data. Accumulates fields values.
void	endElement (const XMLCh *const uri, const XMLCh *const localname, const XMLCh *const qname)
	Receive notification of the end of an element. Attach nodes and fields to object tree. Lanches object process for ach completed object.
void	startDocument ()
void	endDocument ()
void	startPrefixMapping (const XMLCh *const prefix, const XMLCh *const uri)
void	endPrefixMapping (const XMLCh *const prefix)
void	processingInstruction (const XMLCh *const target, const XMLCh *const data)
void	ignorableWhitespace (const XMLCh *const chars, const unsigned int length)
void	setDocumentLocator (const Locator *const locator)
void	skippedEntity (const XMLCh *const name)
unsigned int	getObjectsCount ()
DBObjectNode *	popObject ()
Static Public Methods
void	buildDBObject (XMLFlowContext *p_pContext, XMLStreamProvider *p_pInput, const DBOBJDefinitionNode *p_pDBOBJDefNode, DBOBJSetAction l_intBaseAction)
	Launches input XML parse & mapping. //.
DBOBJSetAction	translateAction (const char *p_pszAction)
	Translation tring action to action constants.
char *	translateAction (DBOBJSetAction p_Action)
	Translation tring action to action constants.

---

Constructor & Destructor Documentation

DBObjectSAXBuilder::DBObjectSAXBuilder (  XMLFlowContext *    p_pContext, const DBOBJDefinitionNode *    p_pDBOBJDefNode, DBOBJSetAction    l_intBaseAction )

Constructor. Inits private data members. Definition at line 850 of file dbobject.cpp. References DEBUG_CREATE. Referenced by buildDBObject().

DBObjectSAXBuilder::~DBObjectSAXBuilder (    )

Destructor. Releases private data members. Definition at line 864 of file dbobject.cpp. References DEBUG_DEL, VAarray< DBObjectNode * >::empty(), VAarray< DBObjectNode * >::pop(), and releaseCharBuffer().

---

Member Function Documentation

void DBObjectSAXBuilder::buildDBObject (  XMLFlowContext *    p_pContext, XMLStreamProvider *    p_pInput, const DBOBJDefinitionNode *    p_pDBOBJDefNode, DBOBJSetAction    l_intBaseAction )  [static]

Launches input XML parse & mapping. //. Parameters: p_pInputXMLStreamBuffer  (XMLStreamBuffer*) Input XML buffer. p_pDBOBJDefNode  (DBOBJDefinitionNode*) Root node of the definition of the objects to build. p_pSAXDB_request  (DBOBJSetRequest*) Parent DBOBJGetRequest object. Definition at line 808 of file dbobject.cpp. References CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, DBObjectSAXBuilder(), DEBUG_IN, DEBUG_OUT, ON_XML_FLOW_ERROR_THROW, PREP_CATCH_XML_FLOW_ERROR, and WATCH_XML_FLOW_ERROR.

void DBObjectSAXBuilder::characters (  const XMLCh *const    chars, const unsigned int    length )

Receive notification of character data. Accumulates fields values. Parameters: chars  The characters from the XML document. length  The number of characters to read from the array. Exceptions: SAXException  Any SAX exception, possibly wrapping another exception. Definition at line 1098 of file dbobject.cpp. References CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, concatCharBuffer(), DEBUG_IN, DEBUG_OUT, XMLFlowContext::getTranscoder(), ON_XML_FLOW_ERROR_THROW, PREP_CATCH_XML_FLOW_ERROR, releaseCharBuffer(), trimCharBuffer(), WATCH_XML_FLOW_ERROR, and XSTR().

void DBObjectSAXBuilder::endDocument (    )  [inline]

Definition at line 674 of file dbobject.hpp.

void DBObjectSAXBuilder::endElement (  const XMLCh *const    uri, const XMLCh *const    localname, const XMLCh *const    qname )

Receive notification of the end of an element. Attach nodes and fields to object tree. Lanches object process for ach completed object. Parameters: uri  The URI of the asscioated namespace for this element localname  The local part of the element name qname  The QName of this element Exceptions: SAXException  Any SAX exception, possibly wrapping another exception. Definition at line 1031 of file dbobject.cpp. References DBObjectNode::addChildNode(), DBObjectNode::addField(), CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, DEBUG_ECHO, DEBUG_IN, DEBUG_OUT, VAarray< DBObjectNode * >::empty(), DBObjectNode::getName(), XMLFlowContext::getTranscoder(), ON_XML_FLOW_ERROR_THROW, VAarray< DBObjectNode * >::pop(), PREP_CATCH_XML_FLOW_ERROR, VAarray< DBObjectNode * >::push(), releaseCharBuffer(), VAarray< DBObjectNode * >::top(), WATCH_XML_FLOW_ERROR, XMLPROCESSOR_MAX_TAG_SIZE, and XSTR().

void DBObjectSAXBuilder::endPrefixMapping (  const XMLCh *const    prefix )  [inline]

Definition at line 676 of file dbobject.hpp.

unsigned int DBObjectSAXBuilder::getObjectsCount (    )

Definition at line 1180 of file dbobject.cpp. References VAarray< DBObjectNode * >::size(). Referenced by DBOBJSetStreamer::commitStream().

void DBObjectSAXBuilder::ignorableWhitespace (  const XMLCh *const    chars, const unsigned int    length )  [inline]

Definition at line 678 of file dbobject.hpp.

DBObjectNode * DBObjectSAXBuilder::popObject (    )

Definition at line 1188 of file dbobject.cpp. References VAarray< DBObjectNode * >::bottom(), and VAarray< DBObjectNode * >::remove(). Referenced by DBOBJSetStreamer::commitStream().

void DBObjectSAXBuilder::processingInstruction (  const XMLCh *const    target, const XMLCh *const    data )  [inline]

Definition at line 677 of file dbobject.hpp.

void DBObjectSAXBuilder::setDocumentLocator (  const Locator *const    locator )  [inline]

Definition at line 679 of file dbobject.hpp.

void DBObjectSAXBuilder::skippedEntity (  const XMLCh *const    name )  [inline]

Definition at line 680 of file dbobject.hpp.

void DBObjectSAXBuilder::startDocument (    )  [inline]

Definition at line 673 of file dbobject.hpp.

void DBObjectSAXBuilder::startElement (  const XMLCh *const    uri, const XMLCh *const    localname, const XMLCh *const    qname, const Attributes &    attrs )

Receive notification of the beginning of an element. Builds objects nodes and fields. Parameters: uri  The URI of the asscioated namespace for this element localname  The local part of the element name qname  The QName of this element attrs  The attributes attached to the element, if any. Exceptions: SAXException  Any SAX exception, possibly wrapping another exception. XMLFlowException  ERRCODE_CAUSE_MISSINGREF Definition at line 882 of file dbobject.cpp. References DBObjectNode::addField(), CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, copyCharBuffer(), DBOBJDEFFIELD_ATTR, DBObjectNode, DBOBJSetAction, DEBUG_ECHO, DEBUG_IN, DEBUG_OUT, VAarray< DBObjectNode * >::empty(), DBObjectNode::getAction(), DBOBJDefinitionNode::getChildNode(), DBObjectNode::getDefinition(), DBOBJDefinitionNode::getField(), DBOBJDefinitionNode::getName(), XMLFlowContext::getTranscoder(), ON_XML_FLOW_ERROR_THROW, PREP_CATCH_XML_FLOW_ERROR, VAarray< DBObjectNode * >::push(), releaseCharBuffer(), SAX_getAttrValue(), DBObjectNode::setAction(), DBObjectField::setValue(), VAarray< DBObjectNode * >::top(), translateAction(), WATCH_XML_FLOW_ERROR, XMLPROCESSOR_MAX_ATTRNAME_SIZE, XMLPROCESSOR_MAX_ATTRVAL_SIZE, XMLPROCESSOR_MAX_TAG_SIZE, and XSTR().

void DBObjectSAXBuilder::startPrefixMapping (  const XMLCh *const    prefix, const XMLCh *const    uri )  [inline]

Definition at line 675 of file dbobject.hpp.

char * DBObjectSAXBuilder::translateAction (  DBOBJSetAction    p_Action )  [static]

Translation tring action to action constants. Parameters: p_Action  (DBOBJSetAction) Action constant. Returns: (string) string action. Definition at line 1157 of file dbobject.cpp. References copyCharBuffer(), DBOBJaction_Delete, DBOBJaction_Insert, DBOBJaction_None, DBOBJaction_Update, DBOBJECTNODE_ACTIONDELETE, DBOBJECTNODE_ACTIONINSERT, DBOBJECTNODE_ACTIONNONE, DBOBJECTNODE_ACTIONUPDATE, and DEBUG_FUNC.

DBOBJSetAction DBObjectSAXBuilder::translateAction (  const char *    p_pszAction )  [static]

Translation tring action to action constants. Parameters: p_strAction  (string) string action. Returns: (DBOBJSetAction) Action constant. Definition at line 1136 of file dbobject.cpp. References DBOBJaction_Delete, DBOBJaction_Insert, DBOBJaction_None, DBOBJaction_Unspec, DBOBJaction_Update, DBOBJSetAction, and DEBUG_FUNC. Referenced by DBOBJSetStreamer::countObjectNodes(), and startElement().

---

The documentation for this class was generated from the following files:

• dbobject.hpp
• dbobject.cpp

---
