SAXDBOBJDefinitionBuilder Class Reference

#include <dbobjdefinition.hpp>

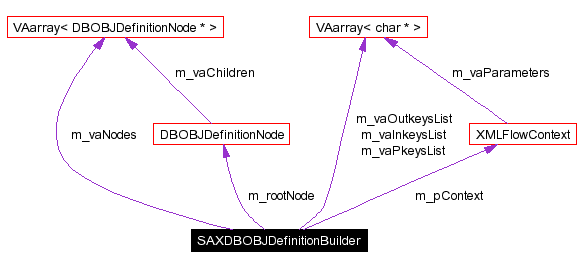

Collaboration diagram for SAXDBOBJDefinitionBuilder:

[legend]List of all members.

---

Detailed Description

Sax contentHandler definition tree builder class.

Definition at line 825 of file dbobjdefinition.hpp.

Public Methods
	SAXDBOBJDefinitionBuilder (XMLFlowContext *p_pContext)
	Constructor.
	~SAXDBOBJDefinitionBuilder ()
	Destructor.
DBOBJDefinitionNode *	getDefinition () const
	After parse, returns root node of the definition tree.
void	startElement (const XMLCh *const uri, const XMLCh *const localname, const XMLCh *const qname, const Attributes &attrs)
	Receive notification of the beginning of an element. Builds definition nodes and fields and attach them to the definition tree.
void	endElement (const XMLCh *const uri, const XMLCh *const localname, const XMLCh *const qname)
	Receive notification of the end of an element. Builds primary keys and keylinks.
void	characters (const XMLCh *const chars, const unsigned int length)
void	startDocument ()
void	endDocument ()
void	startPrefixMapping (const XMLCh *const prefix, const XMLCh *const uri)
void	endPrefixMapping (const XMLCh *const prefix)
void	processingInstruction (const XMLCh *const target, const XMLCh *const data)
void	ignorableWhitespace (const XMLCh *const chars, const unsigned int length)
void	setDocumentLocator (const Locator *const locator)
void	skippedEntity (const XMLCh *const name)
Static Public Methods
DBOBJDefinitionNode *	buildDBOBJDefinition (XMLFlowContext *p_pContext, XMLStreamProvider *p_pInput)
	Launches input buffer parse and construction of definition tree.

---

Constructor & Destructor Documentation

SAXDBOBJDefinitionBuilder::SAXDBOBJDefinitionBuilder (  XMLFlowContext *    p_pContext )

Constructor. Definition at line 1114 of file dbobjdefinition.cpp. References DEBUG_CREATE. Referenced by buildDBOBJDefinition().

SAXDBOBJDefinitionBuilder::~SAXDBOBJDefinitionBuilder (    )

Destructor. Definition at line 1124 of file dbobjdefinition.cpp. References DEBUG_DEL, VAarray< char * >::empty(), VAarray< DBOBJDefinitionNode * >::empty(), VAarray< char * >::pop(), VAarray< DBOBJDefinitionNode * >::pop(), and releaseCharBuffer().

---

Member Function Documentation

DBOBJDefinitionNode * SAXDBOBJDefinitionBuilder::buildDBOBJDefinition (  XMLFlowContext *    p_pContext, XMLStreamProvider *    p_pInput )  [static]

Launches input buffer parse and construction of definition tree. Parameters: p_pInputXMLStreamBuffer  (XMLStreamBuffer*) XMl Buffer containing definition tree's XML stream. Definition at line 1059 of file dbobjdefinition.cpp. References CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, DEBUG_IN, DEBUG_OUT, getDefinition(), MAKE_XMLFLOW_EXCEPTION, ON_XML_FLOW_ERROR_DO, ON_XML_FLOW_ERROR_THROW, PREP_CATCH_XML_FLOW_ERROR, SAXDBOBJDefinitionBuilder(), and WATCH_XML_FLOW_ERROR. Referenced by DBOBJStreamerFactory::buildDefinition().

void SAXDBOBJDefinitionBuilder::characters (  const XMLCh *const    chars, const unsigned int    length )  [inline]

Definition at line 904 of file dbobjdefinition.hpp.

void SAXDBOBJDefinitionBuilder::endDocument (    )  [inline]

Definition at line 906 of file dbobjdefinition.hpp.

void SAXDBOBJDefinitionBuilder::endElement (  const XMLCh *const    uri, const XMLCh *const    localname, const XMLCh *const    qname )

Receive notification of the end of an element. Builds primary keys and keylinks. Parameters: uri  The URI of the asscioated namespace for this element localname  The local part of the element name qname  The QName of this element Exceptions: SAXException  Any SAX exception, possibly wrapping another exception. XMLFlowException  ERRCODE_CAUSE_MISSINGREF Definition at line 1268 of file dbobjdefinition.cpp. References DBOBJDefinitionNode::addKeyLink(), DBOBJDefinitionNode::addPkey(), CATCH_XML_FLOW_ERROR_RELEASE_AND_RETURN, DEBUG_ECHO, DEBUG_IN, DEBUG_OUT, DBOBJDefinitionNode::getName(), XMLFlowContext::getTranscoder(), ON_XML_FLOW_ERROR_THROW, VAarray< char * >::pop(), VAarray< DBOBJDefinitionNode * >::pop(), PREP_CATCH_XML_FLOW_ERROR, releaseCharBuffer(), THROW_XMLFLOW_EXCEPTION, WATCH_XML_FLOW_ERROR, XMLPROCESSOR_MAX_TAG_SIZE, and XSTR().

void SAXDBOBJDefinitionBuilder::endPrefixMapping (  const XMLCh *const    prefix )  [inline]

Definition at line 908 of file dbobjdefinition.hpp.

DBOBJDefinitionNode * SAXDBOBJDefinitionBuilder::getDefinition (    )  const

After parse, returns root node of the definition tree. Returns: (DBOBJDefinitionNode*) Root node of the parsed definition tree. Definition at line 1139 of file dbobjdefinition.cpp. References DEBUG_FUNC. Referenced by buildDBOBJDefinition().

void SAXDBOBJDefinitionBuilder::ignorableWhitespace (  const XMLCh *const    chars, const unsigned int    length )  [inline]

Definition at line 910 of file dbobjdefinition.hpp.

void SAXDBOBJDefinitionBuilder::processingInstruction (  const XMLCh *const    target, const XMLCh *const    data )  [inline]

Definition at line 909 of file dbobjdefinition.hpp.

void SAXDBOBJDefinitionBuilder::setDocumentLocator (  const Locator *const    locator )  [inline]

Definition at line 911 of file dbobjdefinition.hpp.

void SAXDBOBJDefinitionBuilder::skippedEntity (  const XMLCh *const    name )  [inline]

Definition at line 912 of file dbobjdefinition.hpp.

void SAXDBOBJDefinitionBuilder::startDocument (    )  [inline]

Definition at line 905 of file dbobjdefinition.hpp.

void SAXDBOBJDefinitionBuilder::startElement (  const XMLCh *const    uri, const XMLCh *const    localname, const XMLCh *const    qname, const Attributes &    attrs )

Receive notification of the beginning of an element. Builds definition nodes and fields and attach them to the definition tree. Parameters: uri  The URI of the asscioated namespace for this element localname  The local part of the element name qname  The QName of this element attrs  The attributes attached to the element, if any. Exceptions: SAXException  Any SAX exception, possibly wrapping another exception. Definition at line 1151 of file dbobjdefinition.cpp. References DBOBJDefinitionNode::addChild(), DBOBJDefinitionNode::addField(), DBOBJDEFFIELD_ATTR, DBOBJDEFFIELD_MAP_DATE, DBOBJDefinitionField, DBOBJDefinitionNode, DEBUG_IN, DEBUG_OUT, VAarray< DBOBJDefinitionNode * >::empty(), DBOBJDefinitionField::getMap(), DBOBJDefinitionField::getName(), DBStreamerFactory::getSQLSyntax(), XMLFlowContext::getTranscoder(), VAarray< DBOBJDefinitionNode * >::push(), VAarray< char * >::push(), SAX_getAttrValue(), DBOBJDefinitionField::setAttribute(), DBOBJDefinitionNode::setCheckPost(), DBOBJDefinitionNode::setCheckPre(), DBOBJDefinitionField::setDateFormat(), DBOBJDefinitionField::setDBAlias(), DBOBJDefinitionField::setDBField(), DBOBJDefinitionField::setDBSpecProps(), DBOBJDefinitionNode::setDBtable(), DBOBJDefinitionNode::setDistinct(), DBOBJDefinitionField::setDValue(), DBOBJDefinitionField::setHidden(), DBOBJDefinitionField::setIValue(), DBOBJDefinitionNode::setLocked(), DBOBJDefinitionField::setMap(), DBOBJDefinitionField::setName(), DBOBJDefinitionNode::setName(), DBOBJDefinitionNode::setOnDelete(), DBOBJDefinitionNode::setOnInsert(), DBOBJDefinitionNode::setOnUpdate(), DBOBJDefinitionNode::setRestrict(), DBOBJDefinitionField::setUValue(), DBOBJDefinitionField::setValue(), SQL_SYNTAX_MSSQL, SQL_SYNTAX_ORA, VAarray< DBOBJDefinitionNode * >::top(), XMLPROCESSOR_MAX_ATTRVAL_SIZE, XMLPROCESSOR_MAX_TAG_SIZE, and XSTR().

void SAXDBOBJDefinitionBuilder::startPrefixMapping (  const XMLCh *const    prefix, const XMLCh *const    uri )  [inline]

Definition at line 907 of file dbobjdefinition.hpp.

---

The documentation for this class was generated from the following files:

• dbobjdefinition.hpp
• dbobjdefinition.cpp

---
